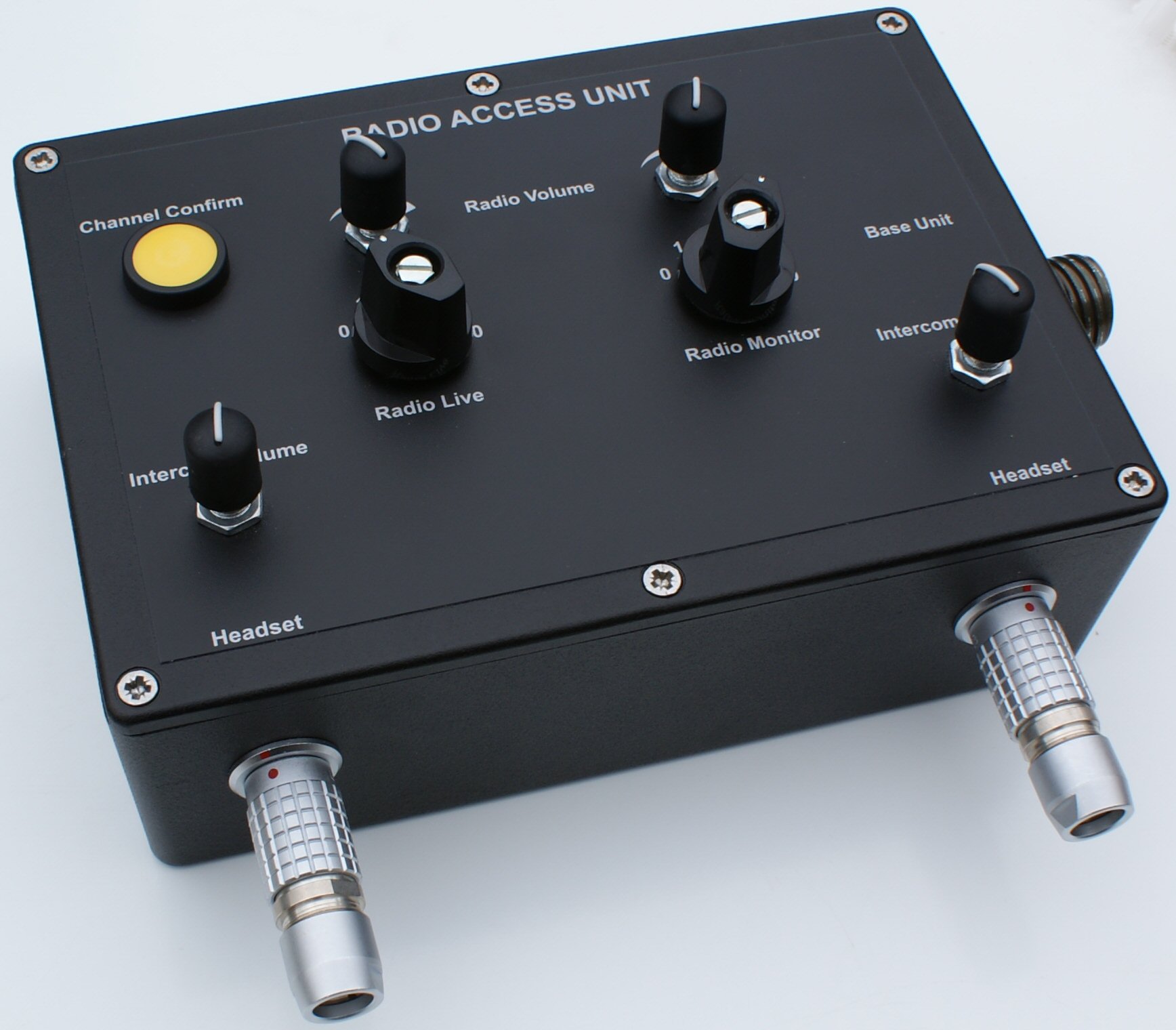

Intercom communication for both crew members and Radio access for the commander
Live intercom capability allows crew to perform other tasks simultaneously
Up to four radios can be supported
RFI suppression circuitry significantly reduces effects of near vicinity high power RF transmissions
Functional control of main features of radios (dependent on access permitted by OEM of radios)
An enhanced MCU for increased configurability of radios and intercom
Full duplex Intercom audio
Driver wirelessly connected to system avoiding connection to RBJ
Easily installable with minimal set-up time required
Minimal training with user-friendly HMI (Human Machine Interfaces)
Up to four radios can be controlled simultaneously
Functional Characteristics
The “C” model comprises the following modules;
- Base Unit (BU) with Wireless Interface Module
- Power Supply Unit (PSU)
- Two or three enhanced Master Control Unit (EMCU)
- Wireless Drivers Unit (DU)
In an armoured front line fighting platform with four crew members, three would be provided with an enhanced EMCU so that they can configure both the intercom and installed radios to suit operational demands, and the Driver would have a wireless hands free capability so that he could operate the platform safely.
This model is suited to Tanks where the turret crew members require full access to the communications. It also provides Commander Radio Transmit Priority which interrupts other crew members' transmissions should the commander key up the radio. The wireless connectivity to the Driver means that connectivity through the Rotary Based Joint is not required. This model is used in restricted space platforms where the majority of crew members require access to configuration of system commensurate with their role
Intercom functions as follows:
- Live or PTT
- Master unit override
- Mates unit broadcast capability
- Individual volume controls
Radio functionality as follows:
- Radio all selections made through keypad
- Radio live or monitor
- Individual radio volume
- Master unit radio privacy
- Master unit can configure radio precedence configuration
- Channel select
- Mode select
- Additional functions which the installed radio can support and is required by Users
General Features:
Supports up to four crew members
It can interface to most types of military, commercial and PMR radios.
Data capability is an option
Compact installation (three boxes) into a wide variety of platforms
Simple to use, easy to maintain
Crisp and clear audio full duplex on Intercom standard half duplex for radio
Supports four users and can be set for priority usage by one User
Can be fitted with anti vibration mounts for all terrain modes of operation
Wide temperature capability -20°C to +75°C
Accepts wide range of connectors from 38999 to standard commercial
RFI and ESD suppression
Low power consumption from 10 watts to 25 watts (“A” to “C” models)
Input voltage range 16 volts dc to 34 volts dc
Power routed via interconnecting cables
Electret or condensing microphones can be used and wide impedance range for earpieces providing capability of accepting most helmet headset combinations
Pressel assembly can provide mic conditioning and compression, amplification and power for
ANR conditions
All headset connections and pressel connections are fitted with snatch connectors
Compact installation four or five boxes plus belt unit
